Railics MLD

Metrolinx-Ready.
Coast to Coast.

Canada's most advanced movement-limiting system for rail equipment.

Request a Quote Download Spec Sheet

Or call 1-855-773-3100

  • Authorized Canadian Distributor
  • Nijhuis Engineering
  • Metrolinx ATO
  • EN 15746-2:2020
  • RIS-1530-PLT
  • 40+ Years Field-Proven

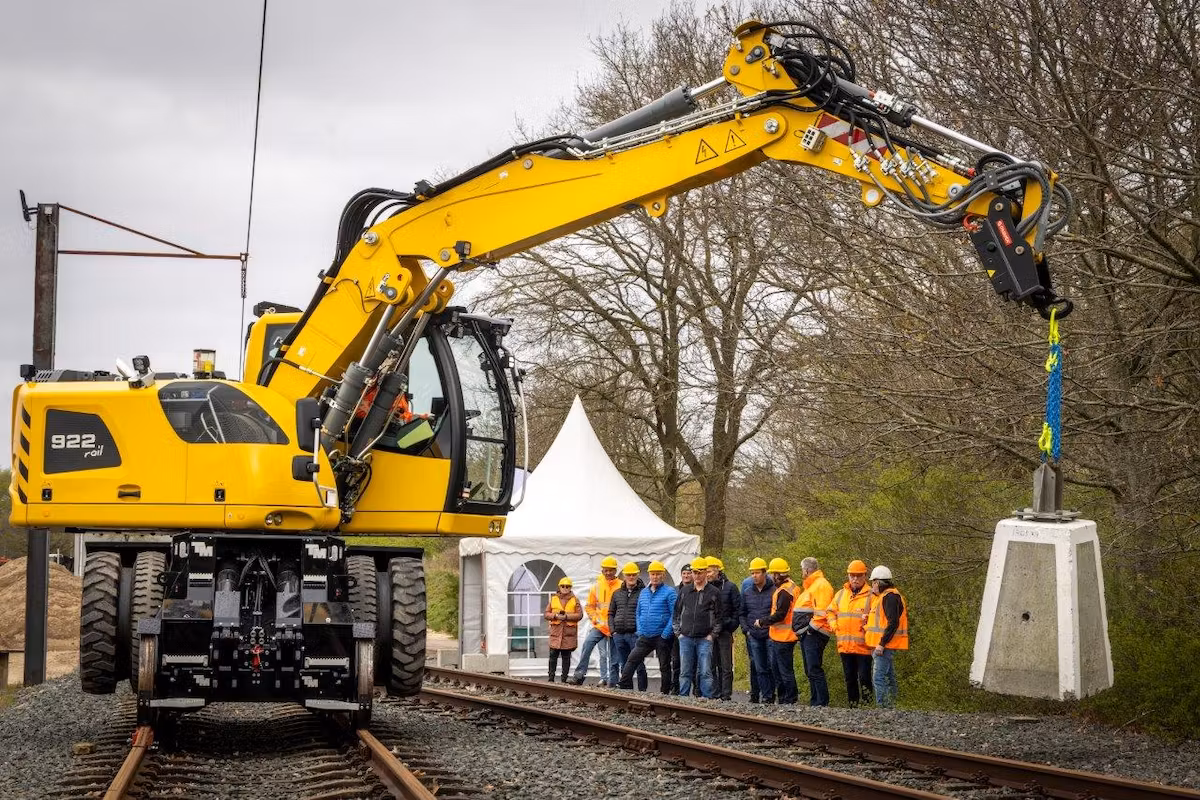

Hydraulic boom equipment on rail infrastructure

The Shift

Rail work in Canada has new rules

Metrolinx and other Canadian rail authorities now require compliant movement-limiting devices on hydraulic boom equipment working in rail corridors. Operators need a system that's compliant out of the box, easy to install on new and existing equipment, and supported locally — on the tracks or at the yard.

The System

One system. Three layers of protection.

Rated Capacity Indicator (RCI)

Alerts the operator before the machine reaches its lifting limit. Real-time audio and visual warnings keep crews working safely inside the envelope.

Rated Capacity Limiter (RCL)

Automatically stops lifting or movement at the safe limit. A hydraulic cut-out prevents overloads before they happen — no operator judgment call required.

Movement Limiting Device (MLD)

Restricts height, slew, and reach to prevent breaches into restricted zones. Pre-programmed and Field-Adjustable virtual walls keep equipment inside the work envelope at all times.

Features

Built for rail. Engineered for compliance.

Virtual Wall

Pre-programmed and Field-Adjustable area limits prevent encroachment into restricted zones.

Real-Time Load Display

Exact lifted weight on a high-visibility 7" touchscreen, readable in direct sunlight.

Integrated Data Logger

Black-box-style tracking for safety audits and compliance reporting.

Fast Setup

Modular prefab connection kits — installation in days, not weeks.

Universal Compatibility

Works on all brands and sizes of hydraulic boom machines — rail, track, or tire-mounted.

7-Tool Support

Up to seven attachments integrated into the load and movement calculation at once.

Compatibility

Works with the equipment you already operate

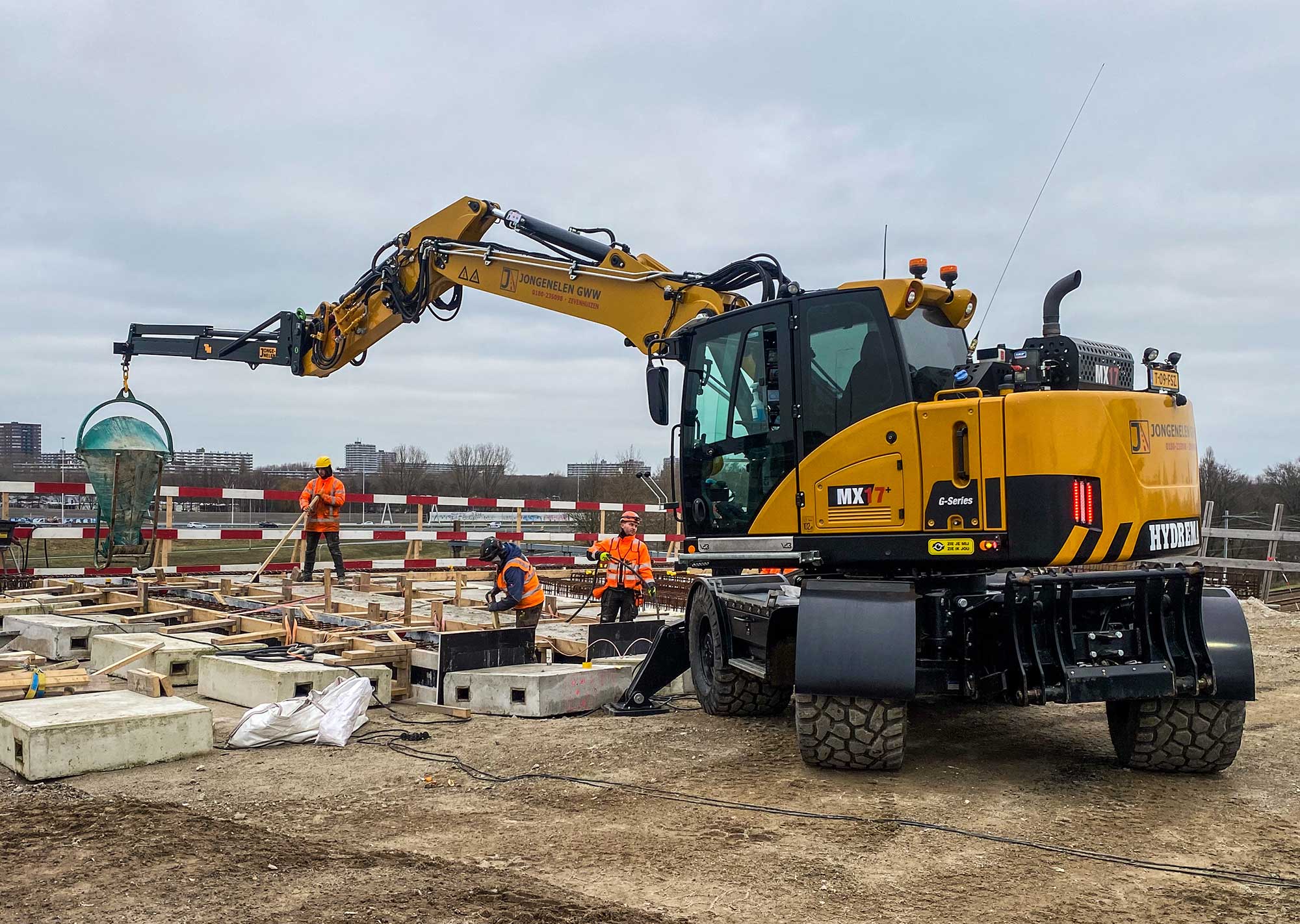

Testing the Rhino arm fitted with Railics MLD

  • Road-Rail Vehicles (RRVs)

    Full MLD integration for on-rail operation.

  • Excavators (all sizes)

    Multi-bank hydraulic cut-out for safe lift and slew.

  • Mobile Elevated Work Platforms (MEWPs)

    Height and reach limits for overhead rail-corridor work.

  • Hi-Rail Trucks

    Rail-compliant load monitoring on dual-mode chassis.

  • Zoom Booms & Loaders

    Calibrated for multi-attachment workflows.

Compliance

Meets every standard that matters

Railics is compliant with the technical standards Canadian and international rail authorities rely on — no retrofits, no workarounds, no gaps.

Download Spec Sheet

  • Metrolinx Technical Standard — Adjacent Track Open (ATO)

    The benchmark for working on or near Metrolinx infrastructure.

  • European Standard 15746-2:2020

    International rail equipment safety standard used across the EU.

  • UK Rail Industry Standard RIS-1530-PLT

    Network Rail's plant safety standard for on-track machines.

Specs

Specifications

Tap any line for details. Full data sheet in the Railics spec PDF.

7-inch touchscreen display
Daylight-readable touchscreen for in-cab configuration and real-time load display.
Stainless steel angle sensors (IP69 rated)
Sealed for high-pressure wash-down and harsh environments — fit for rail-corridor duty cycles.
Multi-bank hydraulic cut-out valve for excavators
Stops unsafe movement across multiple hydraulic circuits simultaneously.
Standard height, slew, and area limiting functions
Pre-programmed and Field-Adjustable virtual walls keep the machine inside an operator-defined work envelope.
Fast prefab connection modules
Installation measured in days, not weeks — crews are productive almost immediately.
Compatible with rail, tracked, and tire-mounted machines
One platform across the fleet — no dedicated setup per chassis type.
Custom programming options for jibs, clamps, forks, and more
Configurations for non-standard attachments are supported in factory or in field.
Real-time operator feedback on lifted loads and job-site limits
Audio-visual alerts before a limit is breached, not after.
Integrated data logging and audit-ready records
Black-box-style tracking for safety audits and compliance reporting.

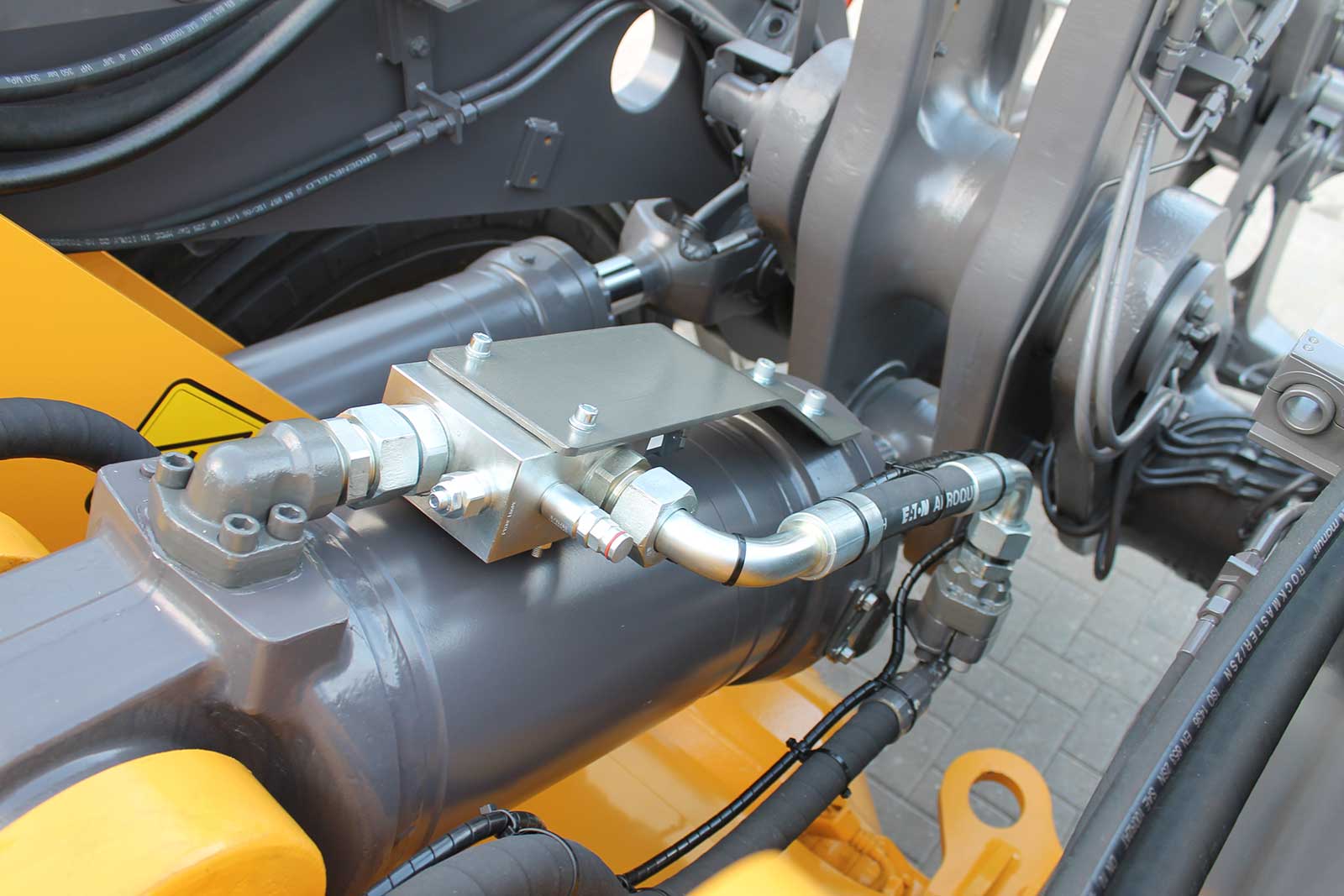

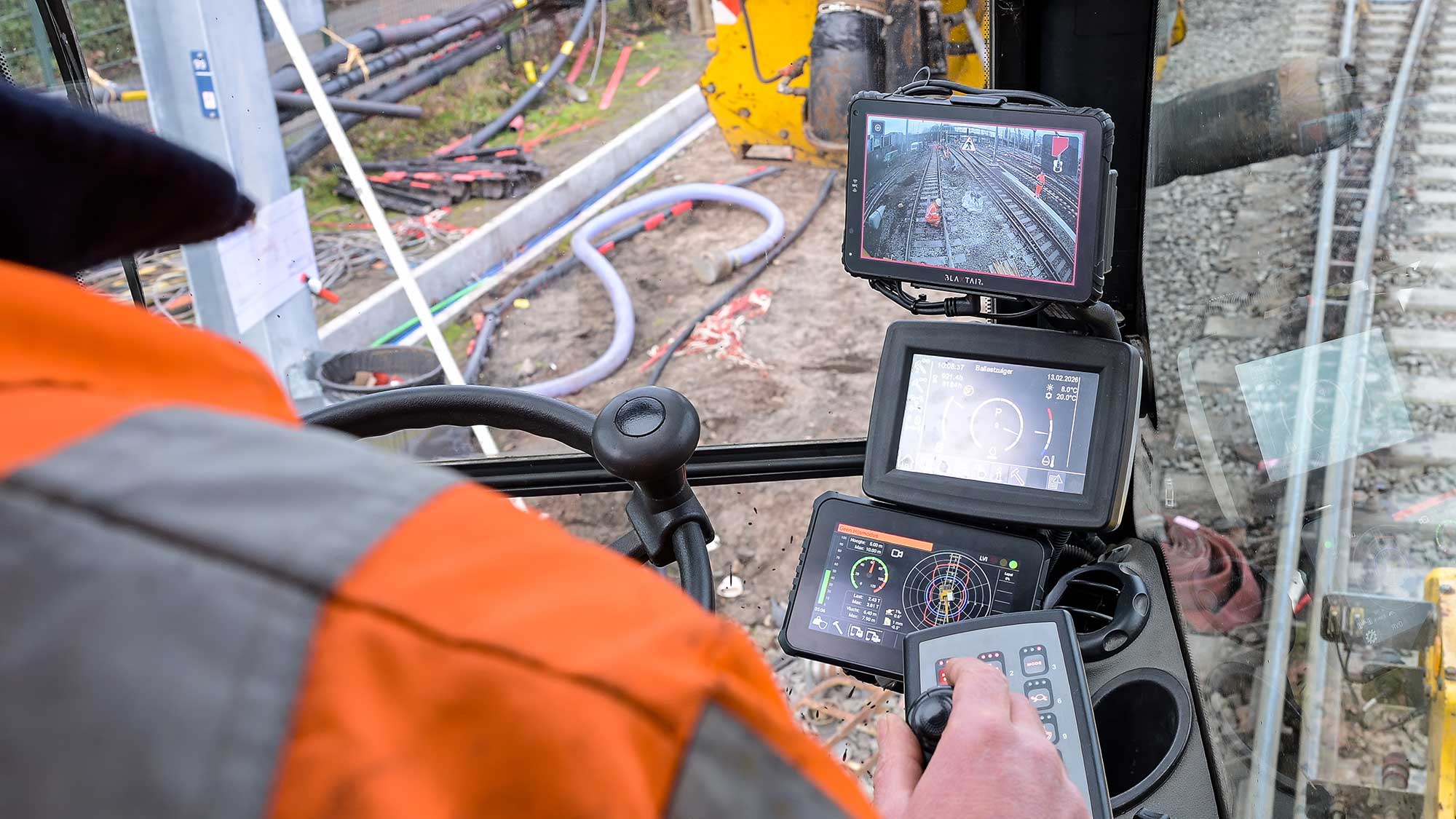

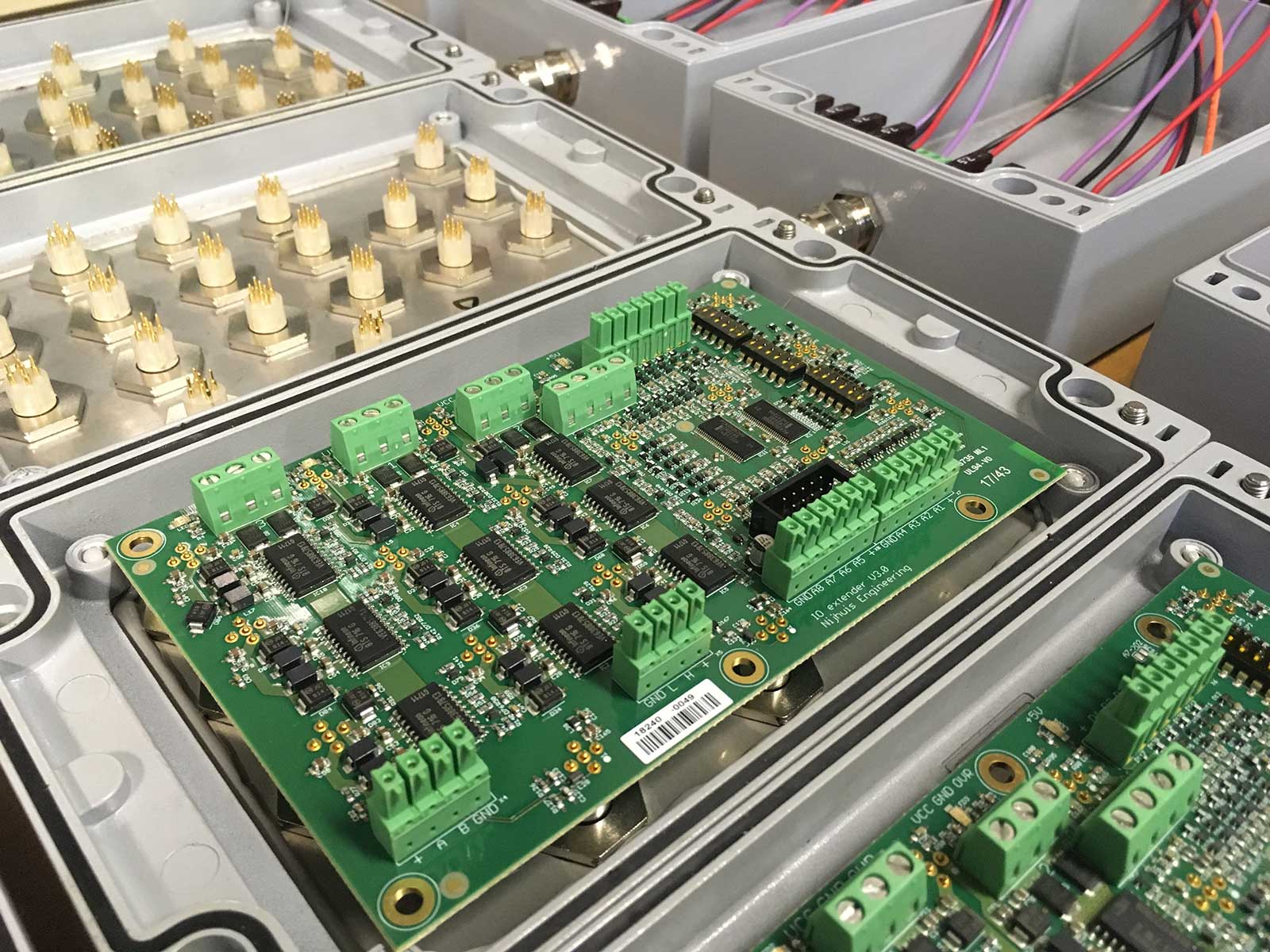

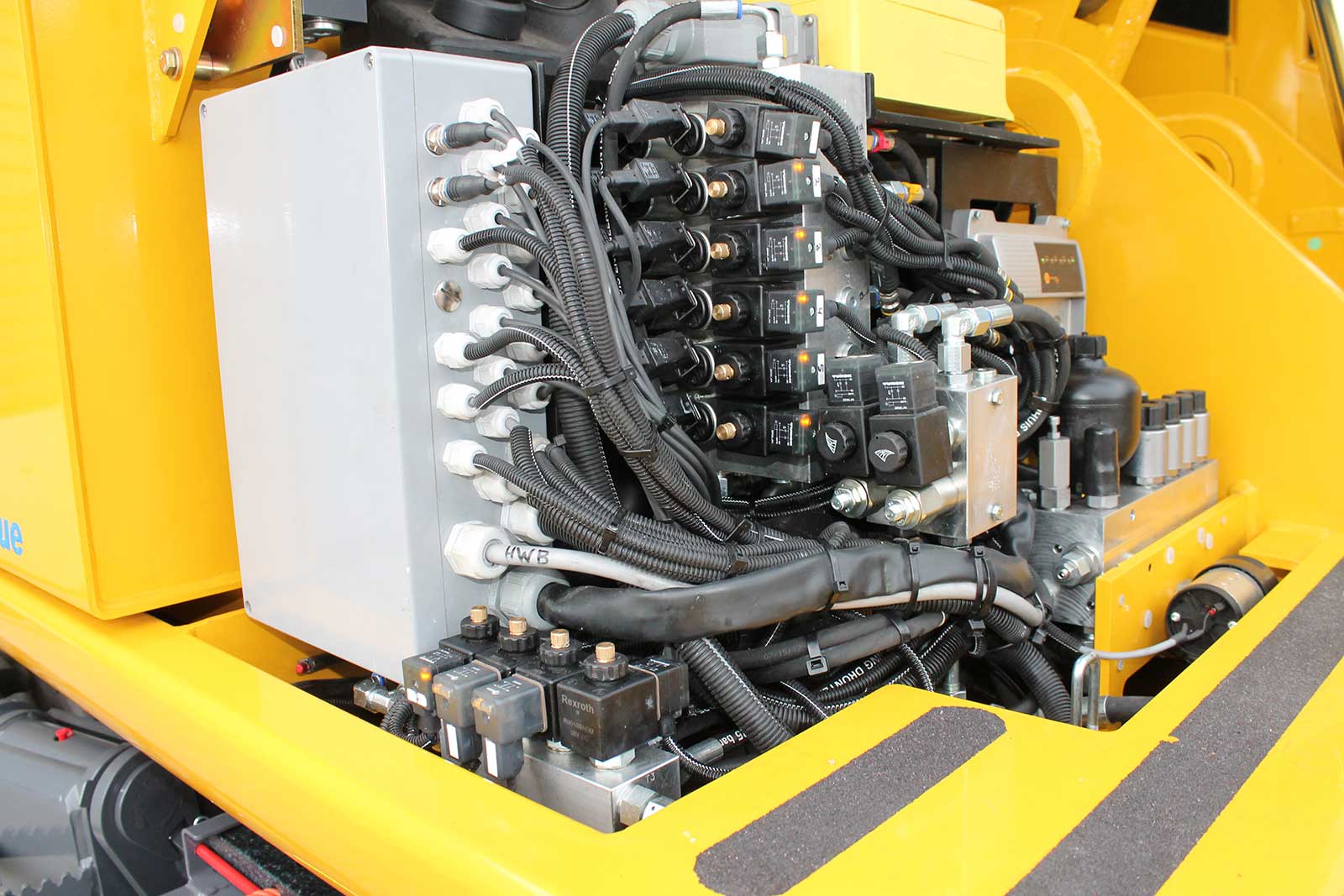

Clean Railics installation on equipment Railics microprocessor control board Railics hi-rail inspection trailer on track Safety lock valves

Compare

Railics, Helics, or Arealics — which is right for you?

Most complete

Railics

The complete rail-corridor system — RCI/RCL + MLD with Metrolinx ATO compliance for on-rail equipment.

  • Rated Capacity Indicator (RCI)
  • Rated Capacity Limiter (RCL)
  • Movement Limiting Device (MLD)
  • Real-time load display & data logging
  • Hi-rail & road-rail vehicle (RRV) support
  • Metrolinx ATO rail-corridor compliant

Best for

Contractors needing full compliance and load monitoring.

Download Railics Spec Sheet

Helics

RCI/RCL + MLD for civil contractor equipment — cranes, excavators, MEWPs, and zoom booms running off-rail.

  • Rated Capacity Indicator (RCI)
  • Rated Capacity Limiter (RCL)
  • Movement Limiting Device (MLD)
  • Real-time load display & data logging
  • Hi-rail & road-rail vehicle (RRV) support
  • Metrolinx ATO rail-corridor compliant

Best for

Civil contractors and rental fleets running cranes, excavators, MEWPs, and zoom booms without on-rail needs, but need RCI/RCL operation.

Download Helics Spec Sheet

Arealics

MLD area limiting only — height, slew, and reach.

  • Rated Capacity Indicator (RCI)
  • Rated Capacity Limiter (RCL)
  • Movement Limiting Device (MLD)
  • Real-time load display & data logging
  • Hi-rail & road-rail vehicle (RRV) support (without full RCI/RCL)
  • Metrolinx ATO rail-corridor compliant

Best for

Cost-sensitive operators who don't need full load monitoring. Upgrade to Railics any time.

Download Arealics Spec Sheet

Audience

Who Railics is for

Rail contractors at work

Rail contractors working under Metrolinx requirements

Ensure your fleet meets the latest movement-limiting standards — without retrofits or rework.

Heavy equipment fleet

Equipment rental companies

Add MLD-equipped machines to your fleet to win more rail-corridor work.

Infrastructure and utility work

Infrastructure & utility companies

Operate safely around live rails and overhead lines.

Construction and municipal work

Construction companies & municipalities

Stay compliant with evolving safety regulations as new corridors come online.

Why HBI

Backed by Canada's rail equipment specialist

HBI is the only authorized Canadian distributor of Railics, operating out of Aylmer, Ontario with nationwide service. Our field team handles everything from specification and shipping to on-site installation, calibration, operator training, and ongoing compliance support — coast to coast.

Services included

  • Nationwide shipping and on-site installation
  • Machine-specific calibration and setup
  • Operator and manager training sessions
  • Technical support
  • Ongoing service and compliance assistance

Coverage

Coast to coast, from Aylmer, ON
